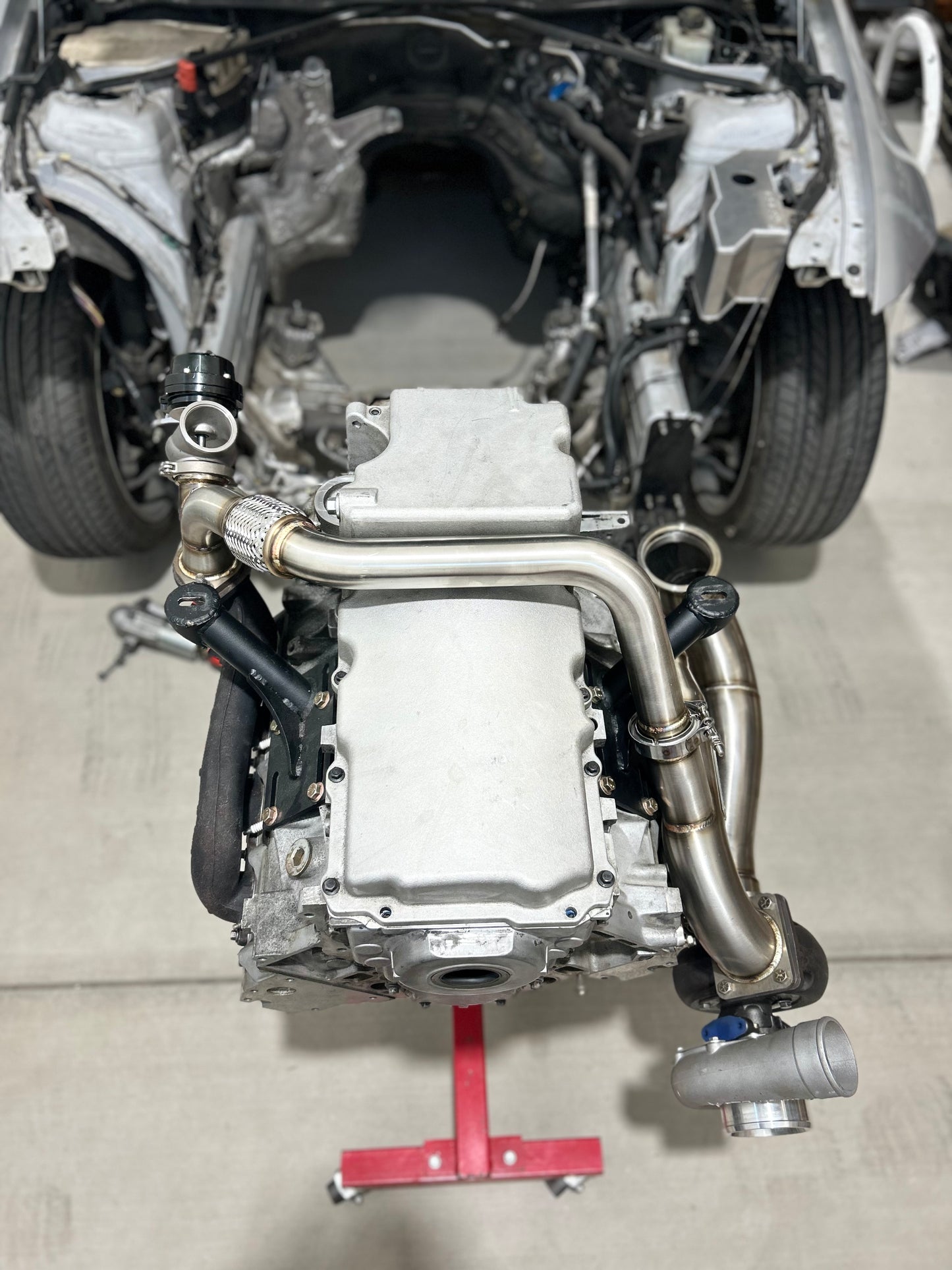

MayhemFab LSE90 Single Turbo kit T4 flange- Hotside+Coldside

****2 WEEK LEAD TIME FROM ORDER DATE****

The turbo kit comes with the following:

Hot parts:

-Stainless sh10 T4 log manifold

-Stainless 3.5” downpipe W/o2 bung and V band flange and clamp for you to have exhaust made or make yourself.

-Stainless 2” crossover with V band and 50mm wastegate provision. The drivers side has a 2 bolt flange that bolts up to a Gen5 Camaro manifold which is up to the customer to source

  -Manifold bolts and gaskets included

Cold side:

-Intercooler brackets for 31x12x4 or 31x12x3 intercooler

-3” Intercooler piping

-T bolt clamps

-Intercooler piping comes with 3/8NPT IAT bung welded in

-50mm Tial/VS racing BOV flange *optional*

*This kit will allow you to retain A/C. Be sure to let me know which accessory drive you plan to have AC with

*Heater core fittings have room and fit flawlessly

* Removal of inner fenders required

*Not for AWD/X-Drive chassis

*VSRacing 78/75 Next Gen Billet 1.25 is the largest turbo that will bolt on without modification. This kit is built SPECIFICALLY around this turbo.

*This kit was built using LSE90 engine/trans mounts and accessory brackets

*Holley 302-1 pan or equivalent

**Engine height may vary, requiring clearance

*The engine will need to be ALL THE WAY FORWARD on the engine mounts.

*Kit requires ICT Billet turbo drain timing cover. Vette accessories must use a certain set up for a timing cover drain to work. Please email me before ordering if you have a Corvette spacing accessory drive

*Certain valve covers and coil-packs may need customization to allow fitment of downpipe

*45 degree plug wires are ideal for fitment

*Does not fit 6 bolt heads

**I am a VS racing dealer and can assist in parts sales such as Turbo, wastegate, bov, intercooler and any other parts from the site you need for your build. Please Email to inquire

****2 WEEK LEAD TIME FROM ORDER DATE****

*Please review Terms and Conditions prior to purchasing*

(Warning) During the installation of any parts, it is acknowledged that modifications and adjustments may be necessary. It is the responsibility of the installer to verify all clearances during the installation process. Variations inherent to aftermarket components and chassis are considered normal and may result in interferences requiring adjustment. Installers are advised to consider these factors when carrying out installations.

(Warning) This is a RACE ONLY product manufactured and sold for installation on vehicles to be used solely for competition purposes. Once this part is installed, the vehicle may never be used, or registered or licensed for use, on a public road or highway. If you install this part on your vehicle and use the vehicle on a public road or highway, you will violate the Clean Air Act 203(a)(3), 42 U.S.C, 7522(a)(3) and may be subject to personal civil or criminal liability.

By purchasing you state that I have read and acknowledge the disclosure warnings regarding EPA/C.A.R.B., and interstate emissions compliance on our Terms and conditions page
